Automatic unloading and palletizing robotic system.

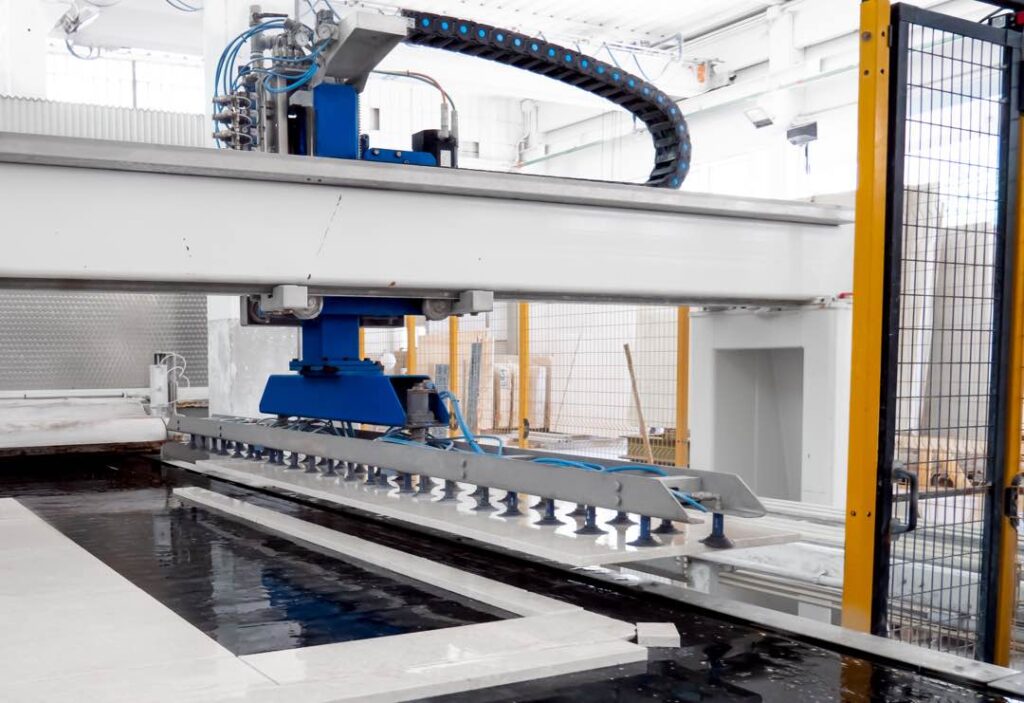

Automatic unloading device: system composed of bridge and supporting structure made from steel on which an arm with suction cups which transports the pieces from the cutting belt to the offloading belt (included in the accessories).

Linear tool storage at 20 positions for ISO 40 cones with max. length 600 mm, complete with pneumatic- lifting stainless steel cover (only for ATC or MTB electrospindle)

Nr. 2 LED lighting devices, positioned perpendicular to the work surface.
They allow a homogeneous diffusion of light to improve the acquisition of images by the camera in case of poorly lit environment.

Slab handling system controlled by the machine CNC, made up of two monolithic steel structures fitted with two belts: the first one is 6200mm long and located in the cutting area, the second one can be either 4000 or 7000mm long and is located in the unloading area.

Disk presetting unit: measurement system of blade diameter.

System for automatic detection of slab thickness.

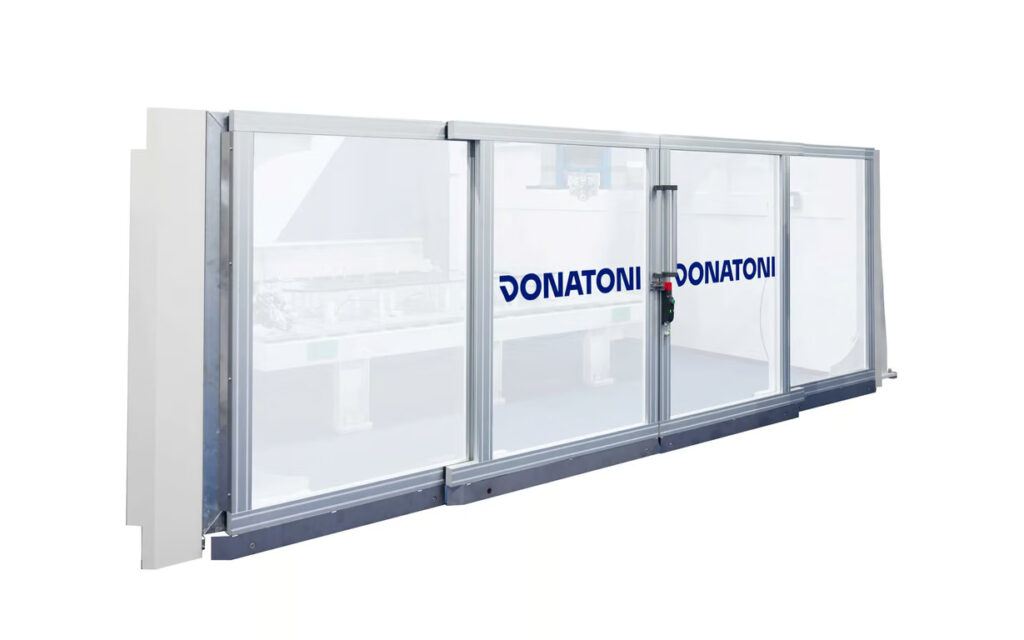

Sliding front safety guards with locking system. They have a small footprint and allow maximum visibility of the work area, while guaranteeing high safety standards.

Side, vertical electrospindle, controlled by an inverter with 0-15.000 rpm, that allows the operator to use small-diameter diamond tools with ½ “”gas connections for incremental cutting / blind or through-hole drilling, as well as combined operations with the blade and milling cutter.

Cutting system for inserting reinforcement bars in the lower part of the kitchen tops. (the optional needs the increase of Y axis stroke length).

Sandblasted and painted with 3 coats of paint

System that allows the operator during the unloading phase to identify the cut pieces with the name of the order or with the dimensions of the pieces, thus facilitating the material packaging operations.

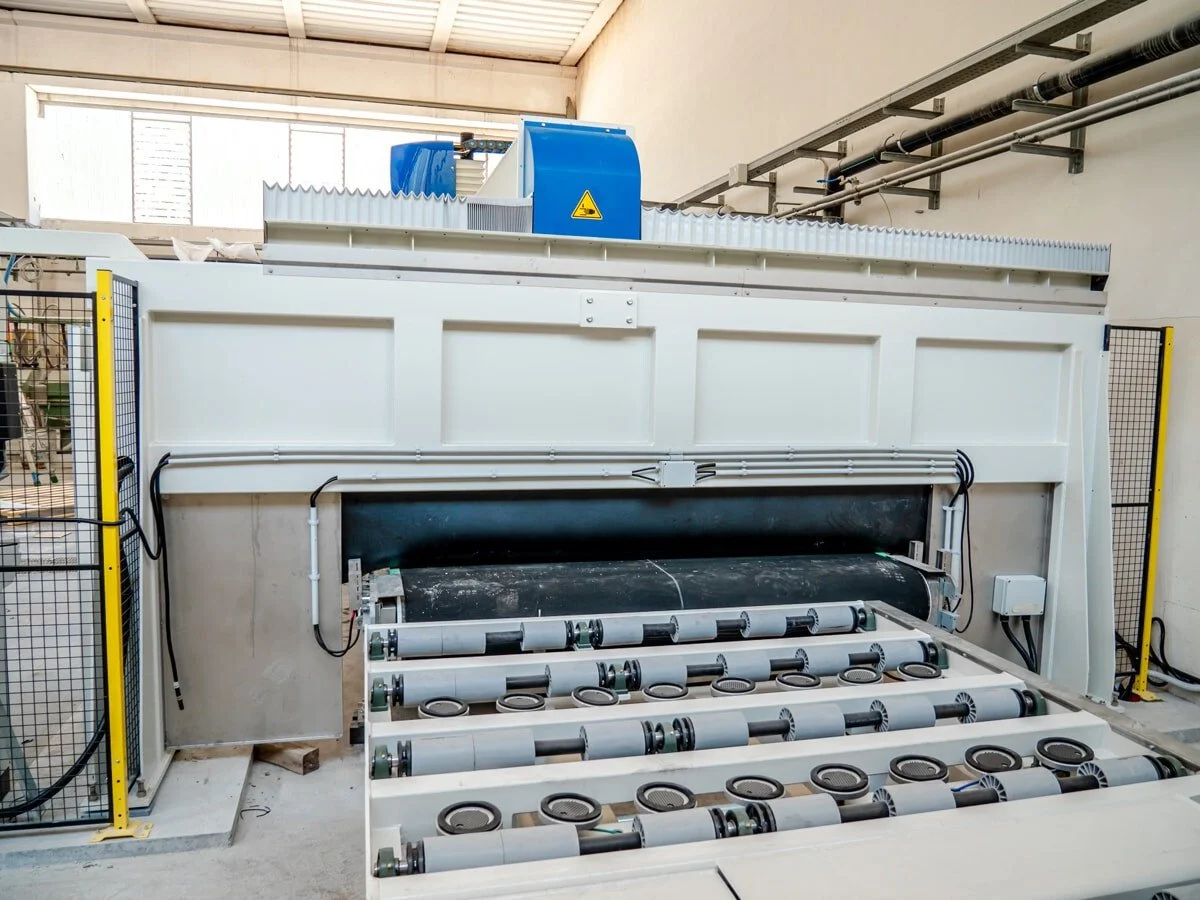

Slab handling system controlled by the machine CNC, made up of a single monolithic steel structure and fitted with a single belt for cutting and unloading area, with an overall length of 10700 mm

Allows the upper and lower surface of the cut pieces to be cleaned before they are packed

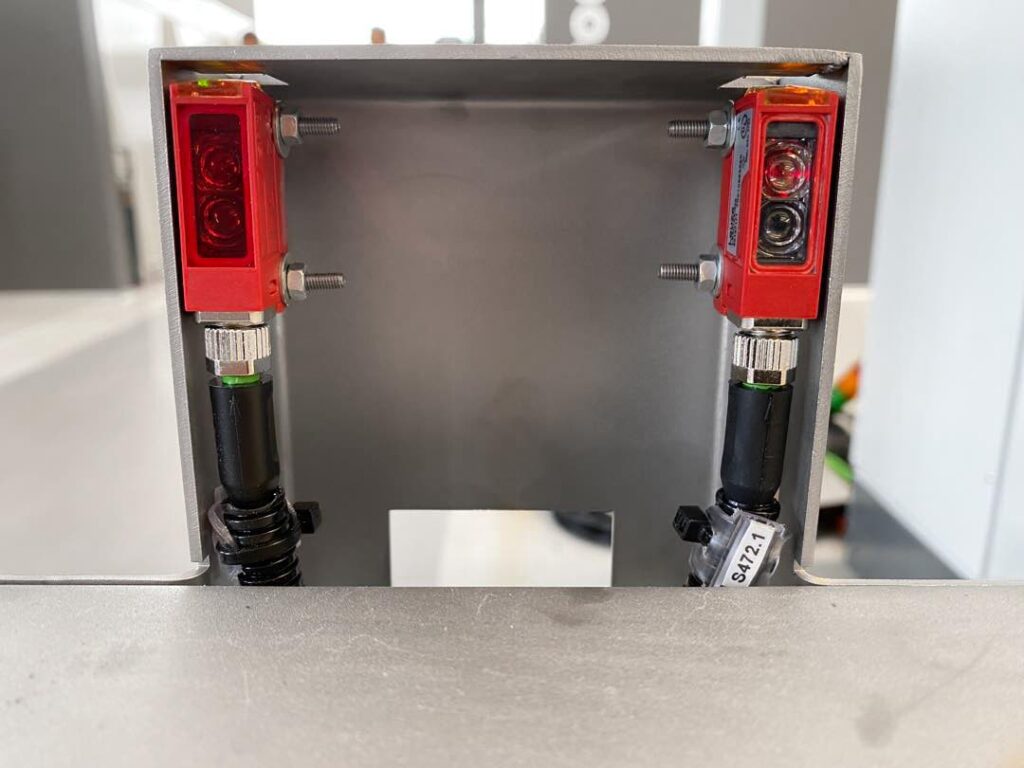

Stop&go unloading system Automatic blocking system which, by 2 lasers, allows the advancement and stop of the pieces up to the edge of the belt.

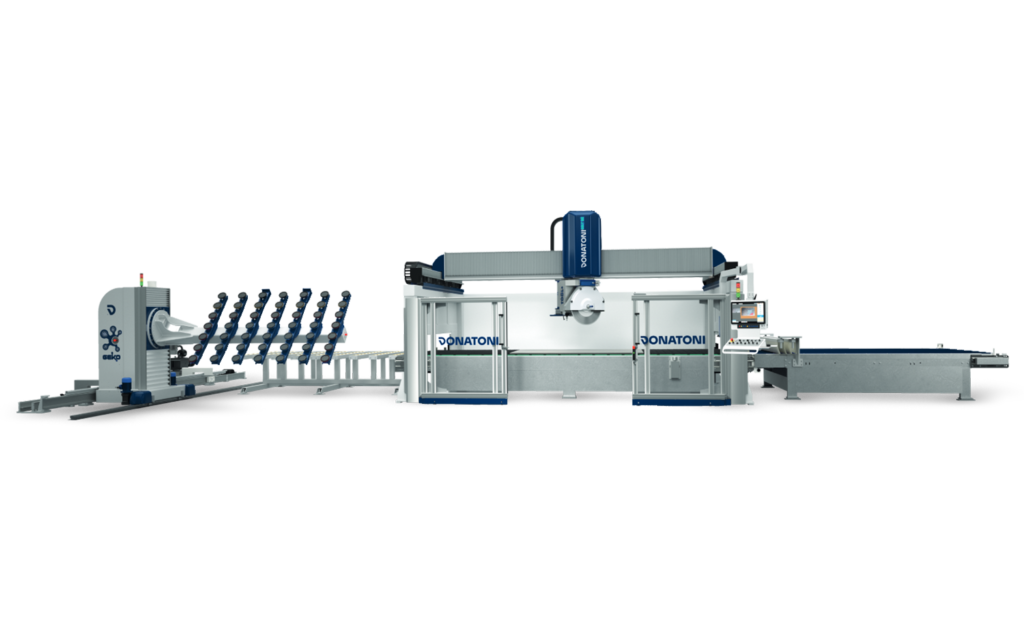

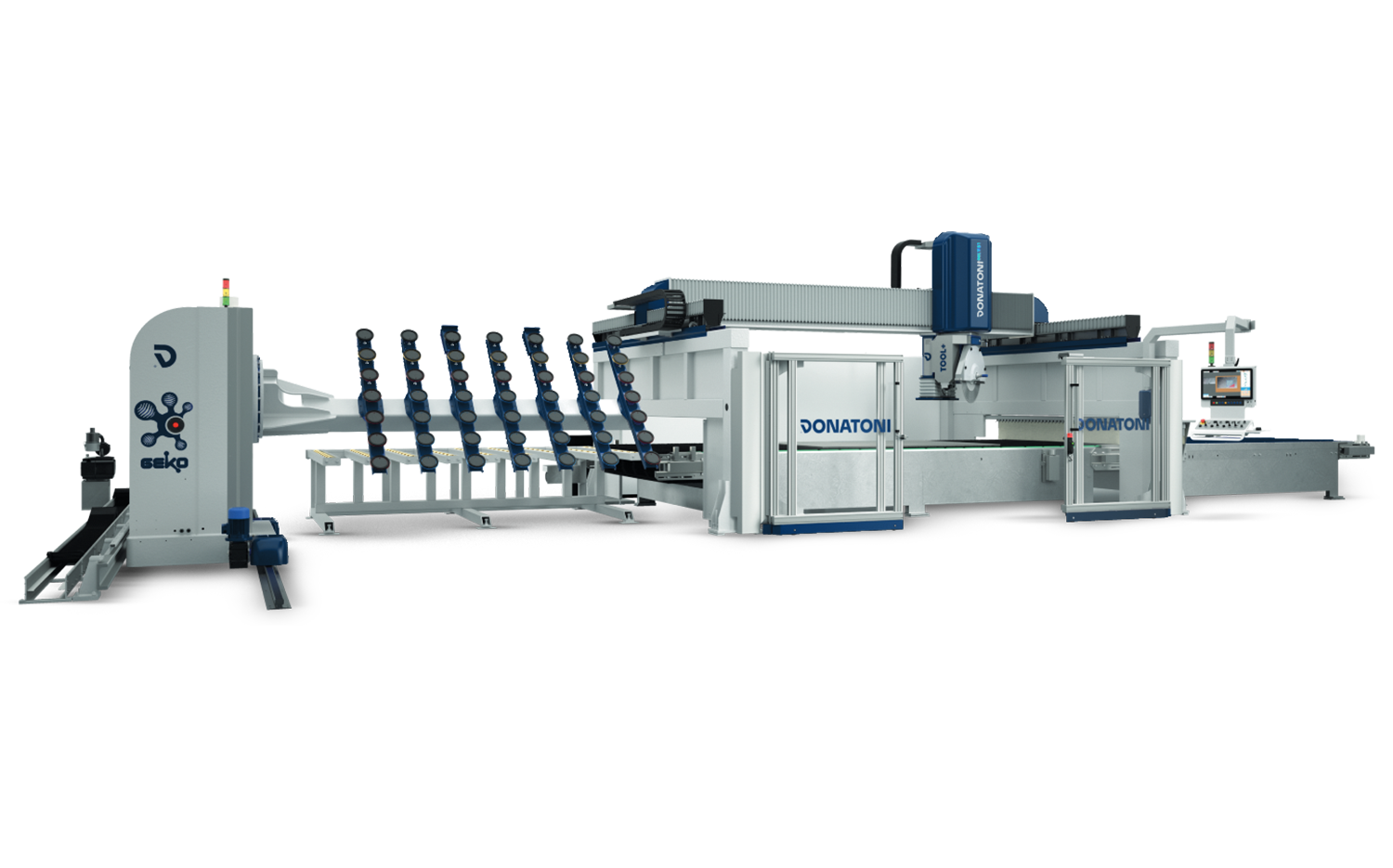

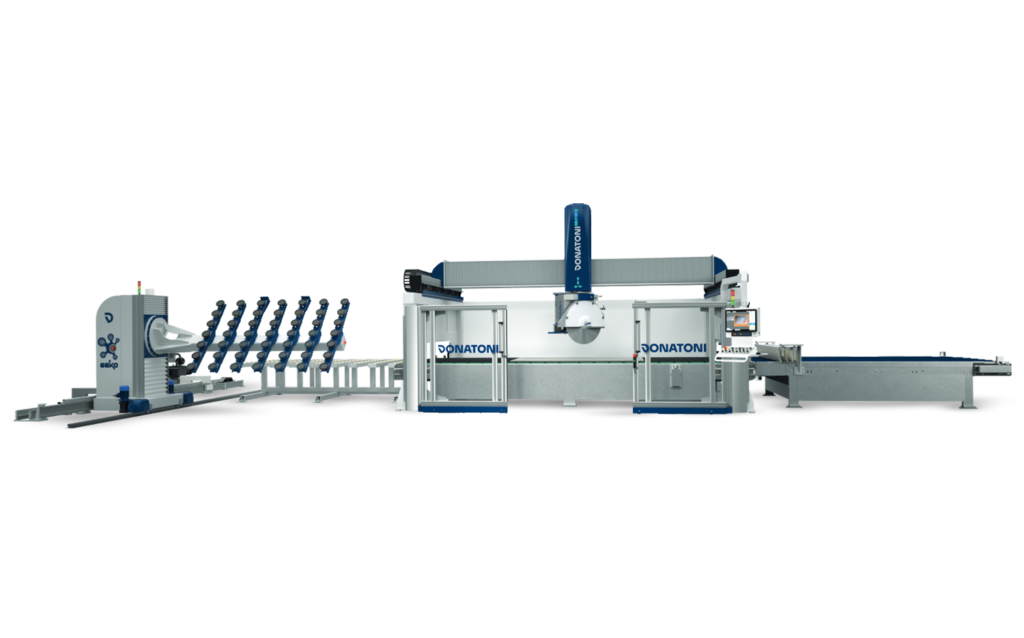

GEKO is an automatic loader/unloader perfect for the automation of marble and granite processing lines.

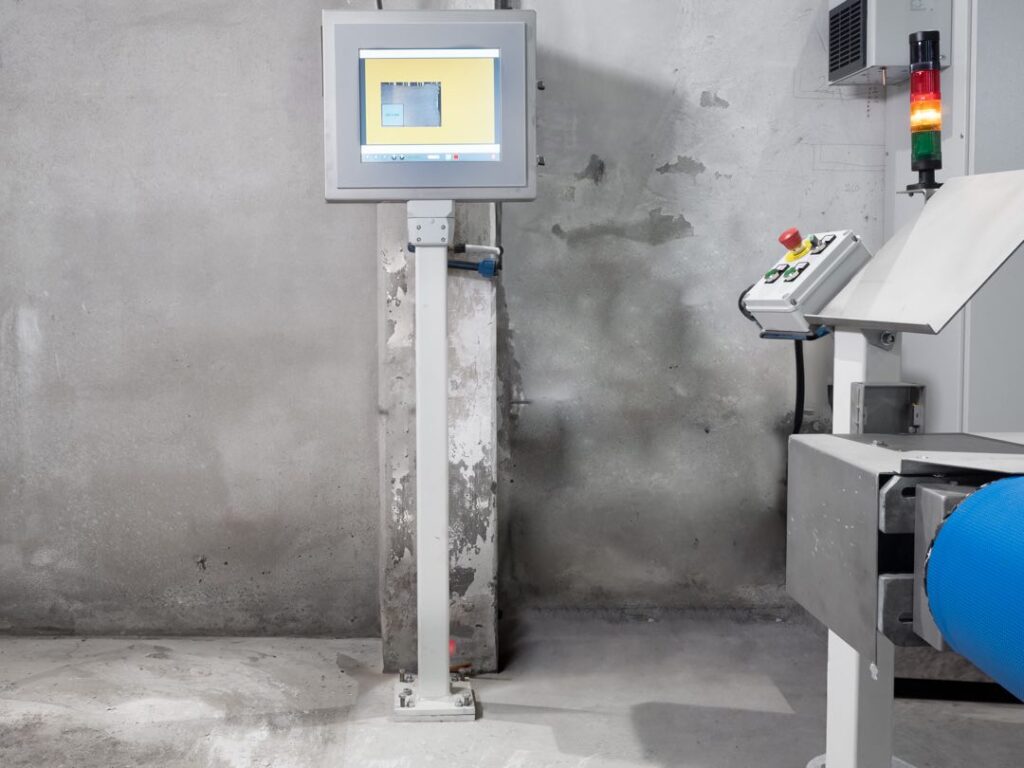

End of line monitor: system that allows the operator to identify the cut pieces with the name of the job or with the dimensions of the pieces during the unloading phase, thus facilitating the material packaging operations

Cut marker linear laser to display the cutting direction of the disc or to detect the perimeter of the slab.
