Donatoni

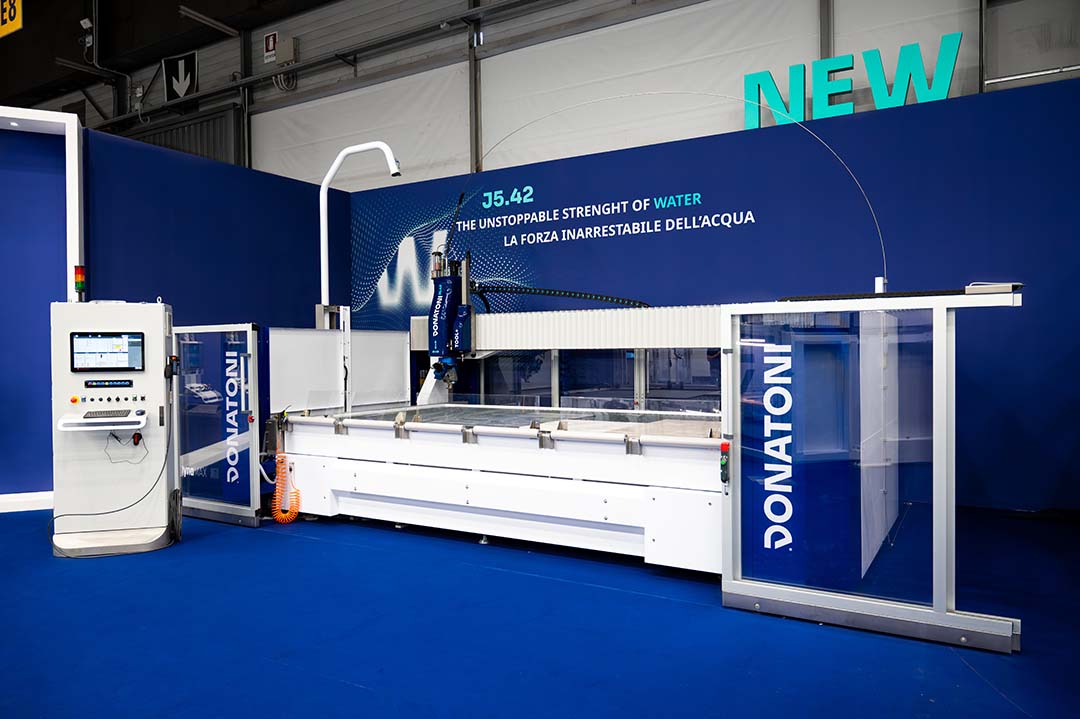

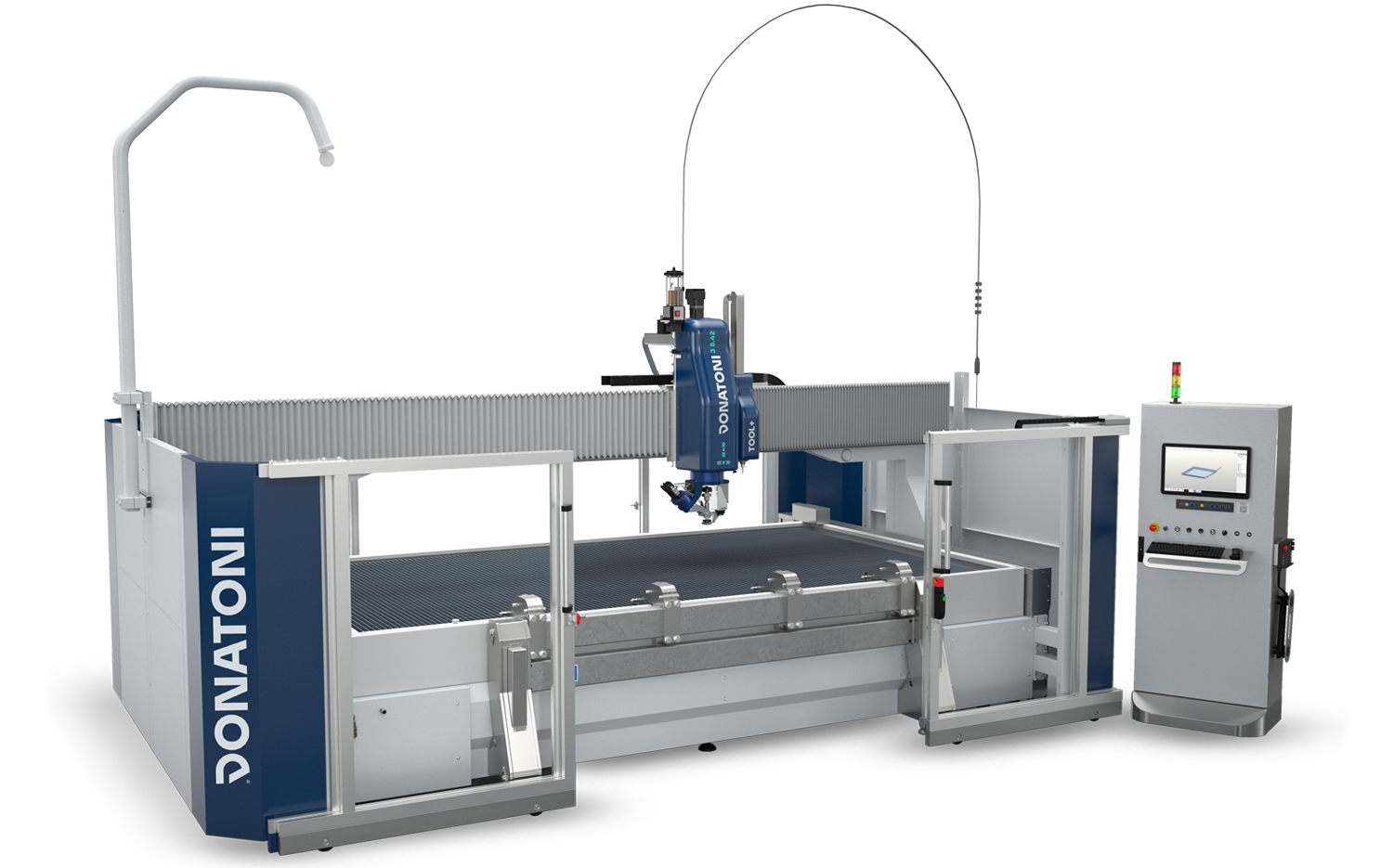

The DONATONI J5.42 is the newest Waterjet cutting centre, designed and developed by DONATONI, to meet the needs of customers looking for a reliable and easy-to-operate waterjet cutting system for processing different materials.

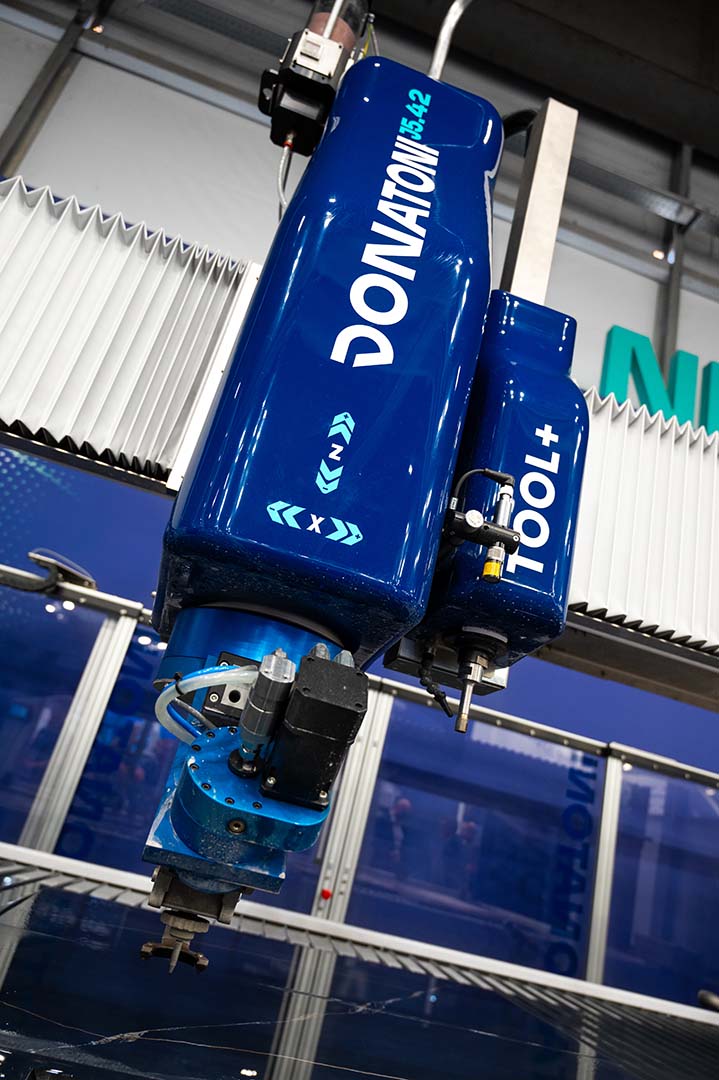

Made entirely in Italy and at the forefront of technology, DONATONI J5.42 allows for various types of cuts (longitudinal, transversal, oblique, inclined, curvilinear, elliptical), as well as milling and lowering (with the addition of TOOL+), and finally, through holes and inlays.

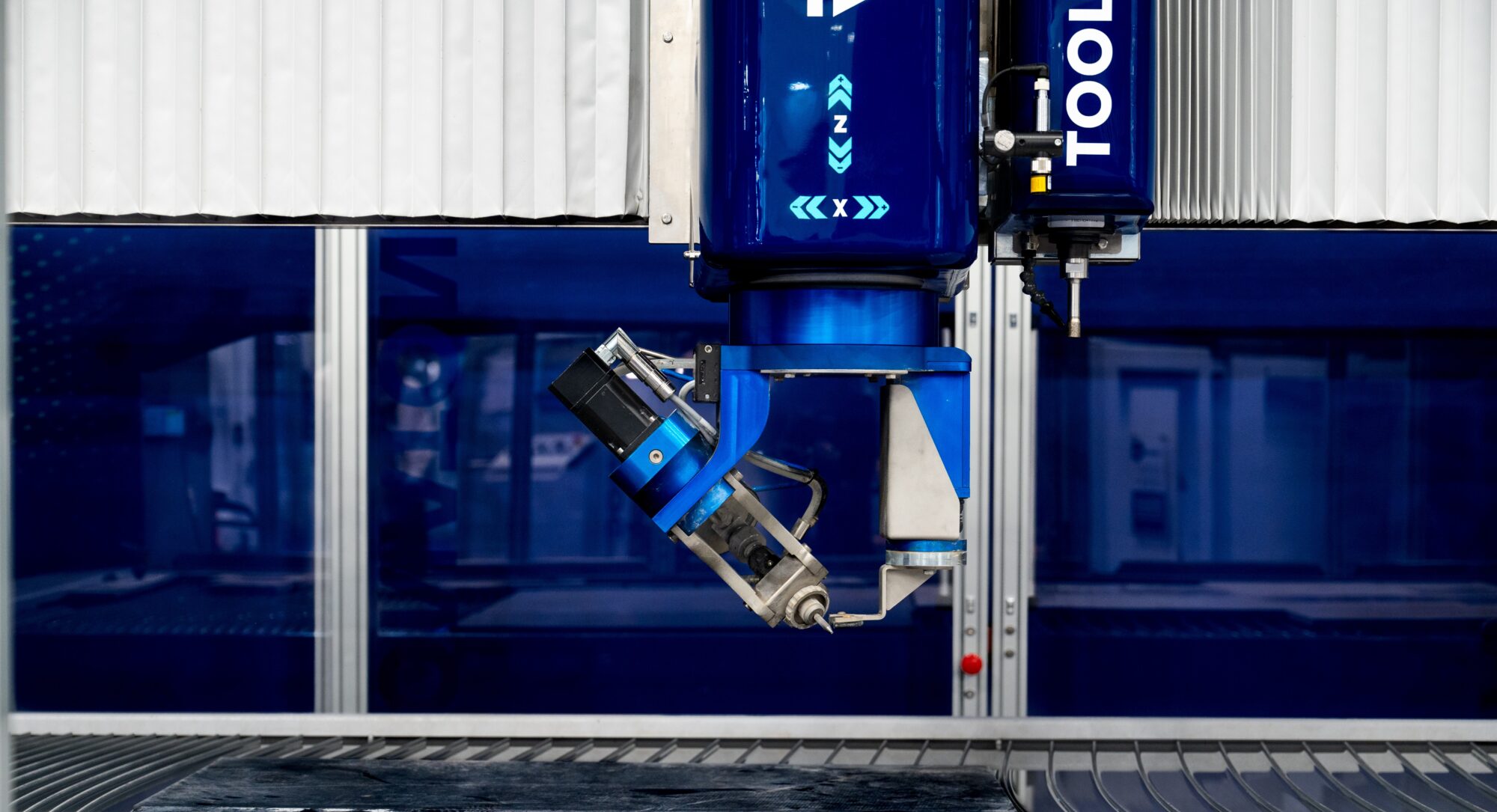

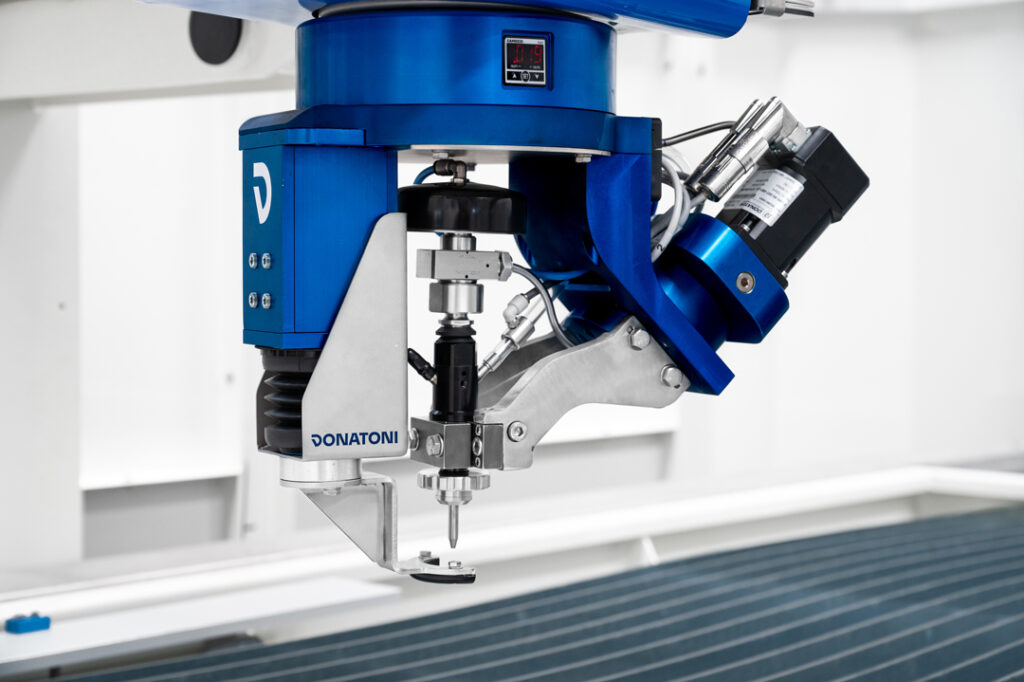

The customer is our top priority. The DONATONI J5.42 can be customized according to the needs and specific requirements requested by our customers. Through a special rotary joint, it is possible to enable the infinite rotation of the “C” axis without limitations imposed by cables or tubes.
Main features

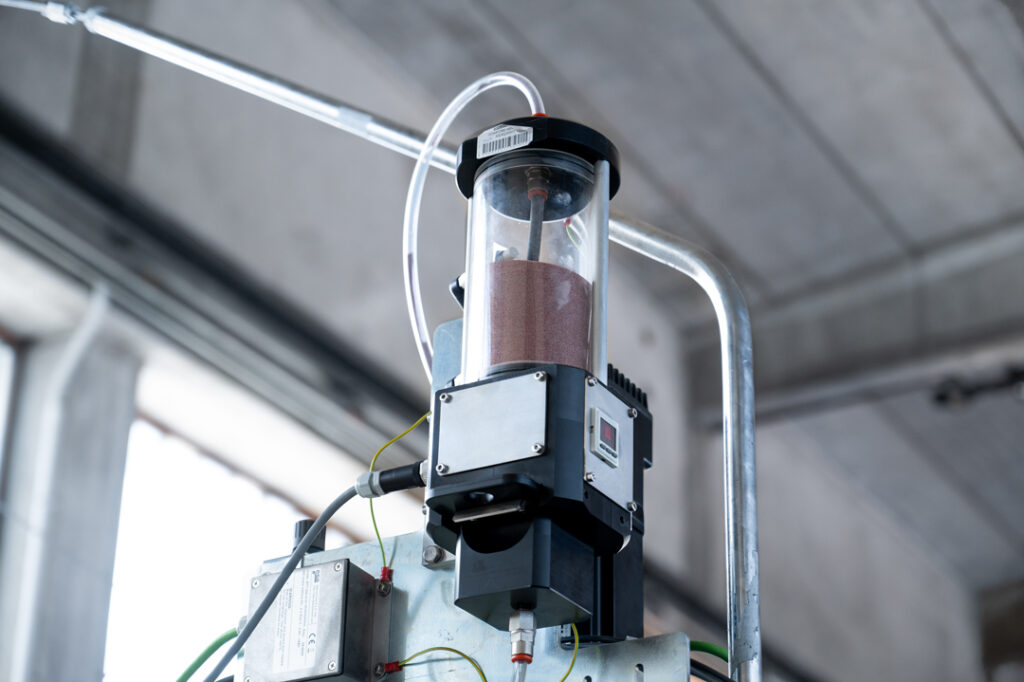

- The movable bridge structure with thick steel bracket units offers unparalleled structural strength, which enables the highest precision in cutting operations. Movements are controlled by two servomotors, one on the right and one on the left (GANTRY system), ensuring excellent finishes even in the most complex and demanding machining. The cutting process uses a water jet, with abrasive sand added, capable of reaching pressures up to 4200 bar.

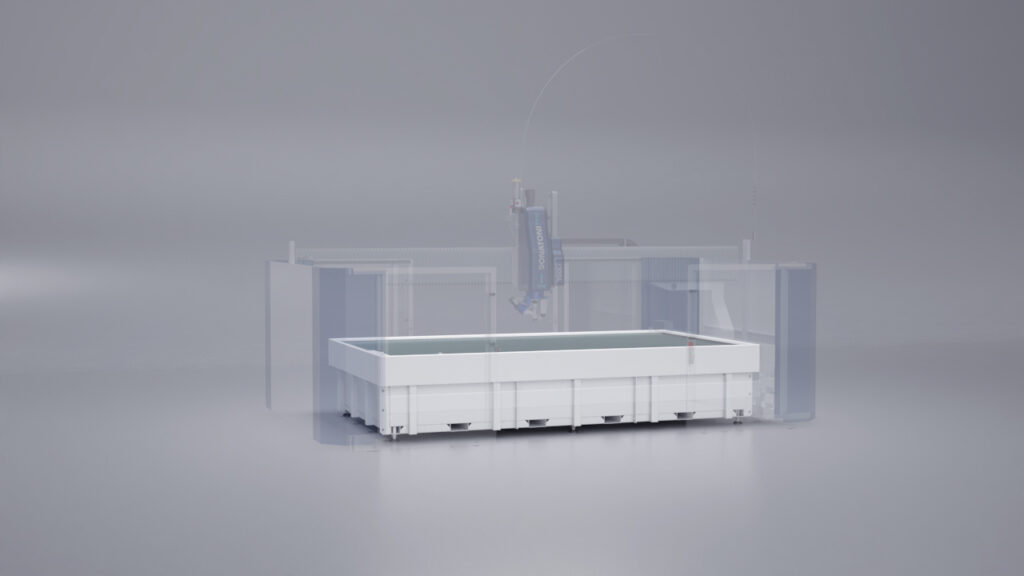

- The DONATONI J5.42, with its small size and versatility, provides the utmost functionality and user-friendliness. Access to the area for loading and unloading material is easy. Maintenance and cleaning of the tank are facilitated by the fact that it is possible to remove the blade table in one step.
Simple and easy to program
Wide range of work processes
Reduced space required
Extremely precise cutting
Flexible production
Extremely versatile
High performance on contour cuts
Maximum material utilization
Application sectors
Donatoni J5.42 can be used for :
Software
Technical data
Additional information
| Number of interpolated axes | N° | |
| Carriage stroke X axis | mm | |
| Maximum carriage speed (X axis) | m / min | |
| Bridge stroke Y axis | mm | |
| Maximum bridge speed (Y axis) | m/min | |
| Vertical stroke Z axis | mm | |
| Maximum head speed (Z axis) | m / min | |
| Blade-carrying head rotation (C axis) | degrees | |
| Waterjet head tilting movement (axis A) | degrees | |
| Maximum slab dimensions | mm | |
| Work table load capacity | kg | |
| HP water intensifier max working pressure | bar | |
| HP water intensifier max flow | l/min | |
| HP water intensifier electr. power | kW | |
| Intensifer overall dimensions (W/L/H) | mm | |
| Intensifier weight | kg | |
| Abrasive tank capacity | l | |
| Overall dimensions abrasive tank (W/L/H) | mm | |
| Slab lenght gauges stroke | mm | |
| Water consumption (3 bar) | l/min | |
| Air Consumption | l/m | |
| Standard electric voltage | V/Hz | |
| Total installed power (without optional) | kW | |
| Overall dimensions (W/L/H) | mm | |
| Control panel overall dimensions (W/L/H) | mm | |
| Control panel weight | kg | |
| Total weight (approx.) | kg |
