TWIN S3 Q

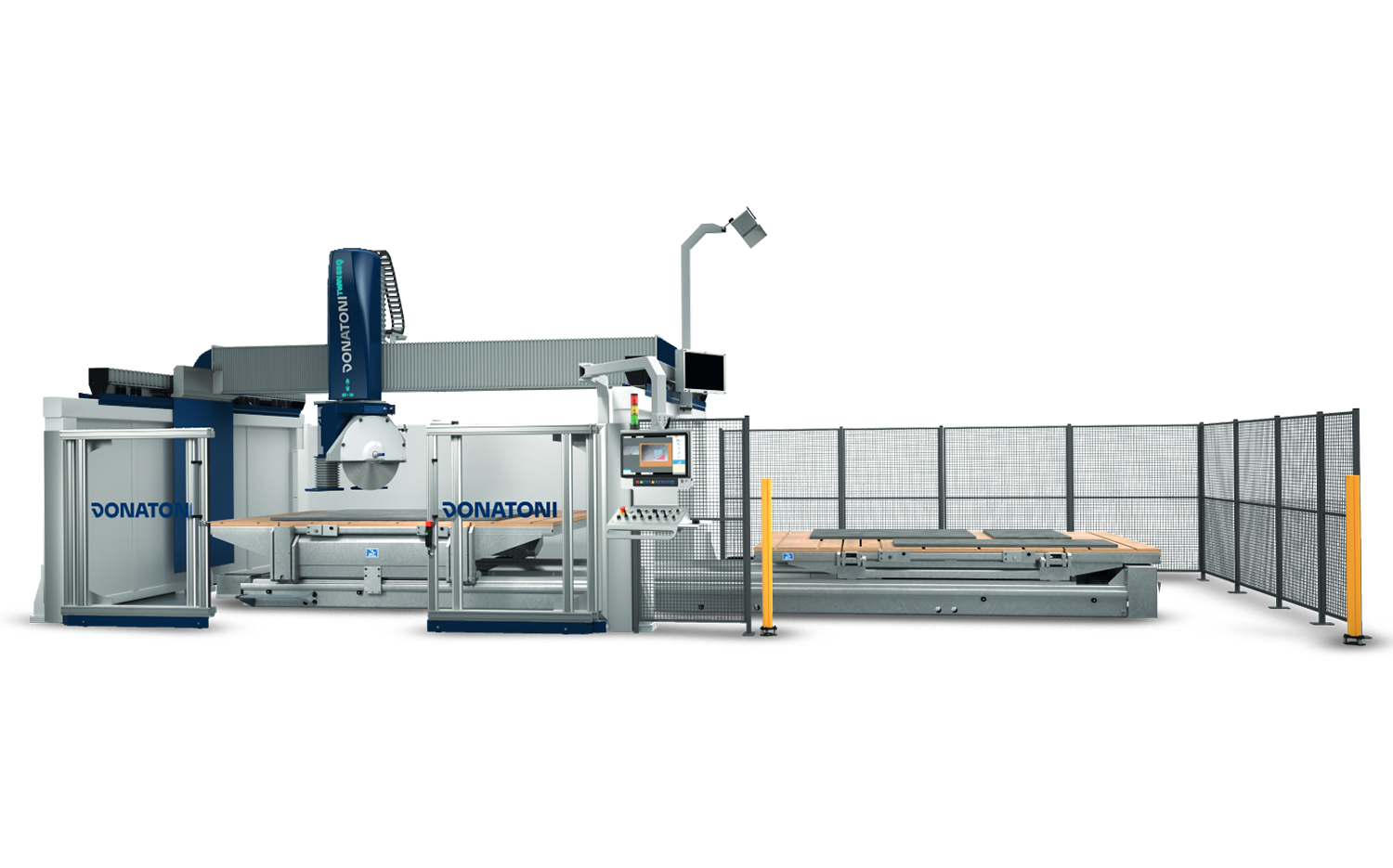

Donatoni TWIN S3 Q

TWIN S3 Q

Request info
Donatoni TWIN S3 Q

High productivity machines with Twin System patent

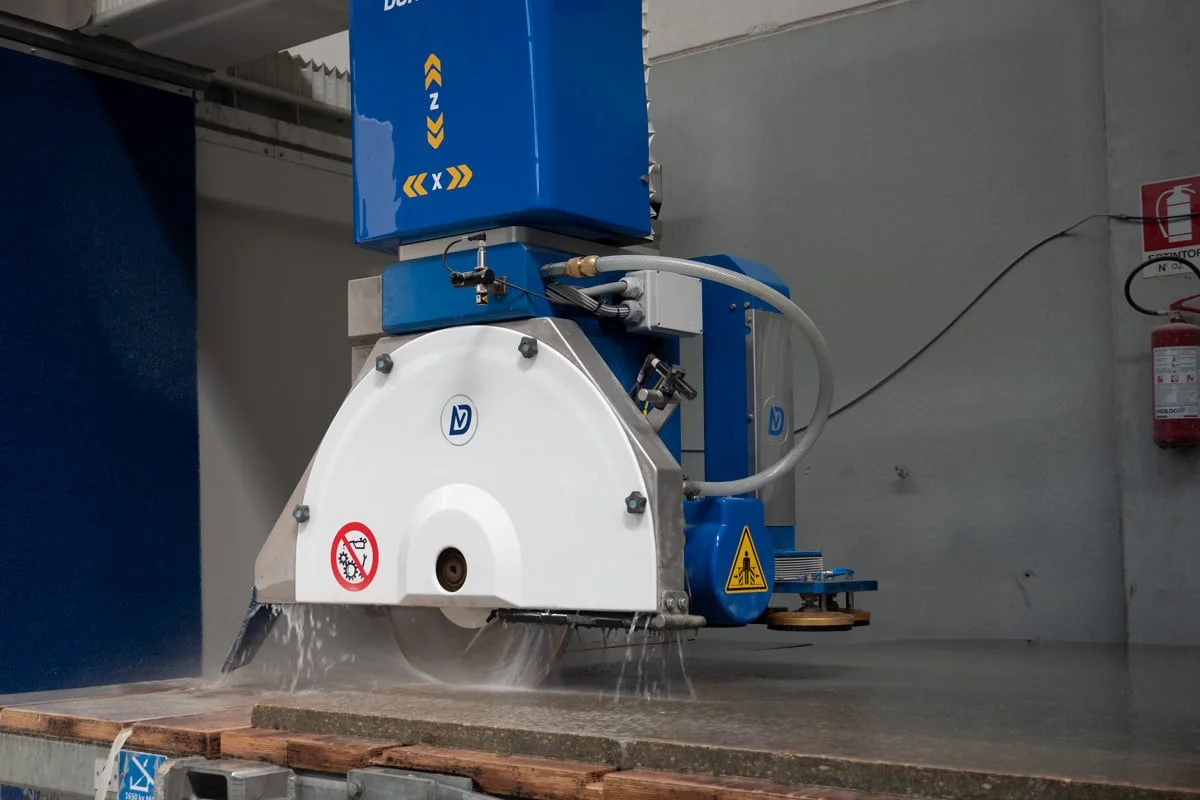

The DONATONI TWIN S3 is a CNC bridge milling machine with 5/6 interpolated axes featuring the TWIN System: the patented system designed by Donatoni Macchine which allows the bridge milling machine performance to be fully optimised, thereby increasing the production capacity by more than 70%. This machine allows a ’wide range of work processes to be performed, like cutting up to 150 mm, milling, drilling and shaping.

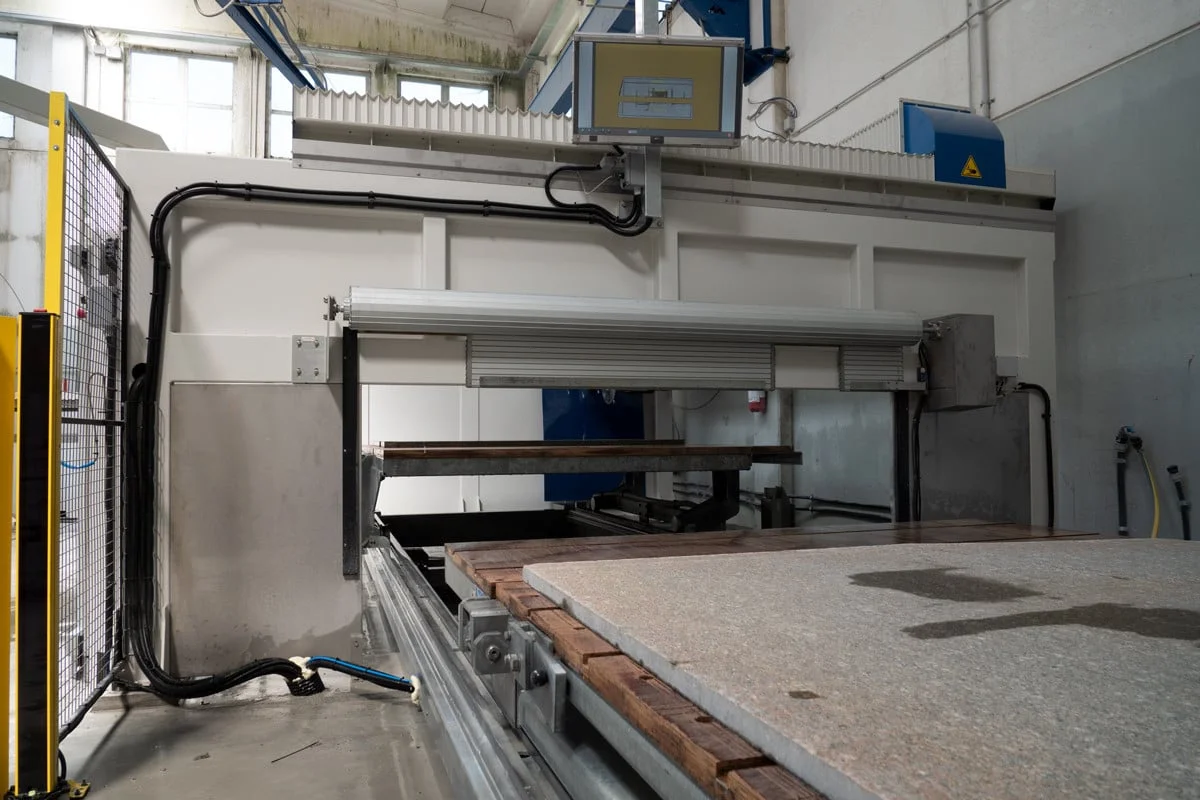

The Twin System consists of a double bench with an automatic bench exchange system, which lays on a monobloc frame with rails, on which the two benches slide to move between the cutting area and the unloading area. This allows the operator to perform loading/unloading/programming operations on the 1st bench while the machine is working on the 2nd bench.

Advantages of the TWIN System:

  • Increase of the production capacity.
  • Only 1 operator needed.
  • 2 milling machines in 1: possibility to use the machine as a traditional bridge milling machine and to perform shaping processing operations.

Sliding guides are lubricated with an oil-bath system (X and Y axes).

Discover the complete series

Main features

  • Thanks to the TWIN-SYSTEM technology, production can reach unprecedented levels of efficiency.
  • Operators can easily manage the different process phases, making best use of the processing time and notably increasing the production capacity.
  • The precision, speed and reliability of the DONATONI Twin saws give surprising results: productivity higher by 70%!
No foundations required

No foundations required

Simple and easy to program

Simple and easy to program

Cnc technology: precision and productivity

Cnc technology: precision and productivity

Reduced space required

Reduced space required

High productivity

High productivity

Cut otimisation

Cut otimisation

Only one operator needed

Only one operator needed

Main components

Watch the TWIN S3 Q in action

Application sectors

Donatoni TWIN S3 Q can be used for :

Software

D-Inside

Manages the integration of the machine with the programming softwares.

Perfection in processing is reached through multiple movements that need o be perfectly coordinated. Every Donatoni machine is created with a smart system for managing work, integrated with all the parts that manage its movements; we call this system D-Inside, the Brain of the machine. D-Inside is an advanced interface but simple from the point of view of use and also ideal for less expert operators as it manages the machine-software system. The D-Inside system offers various programming options and can be interfaced with various types of Donatoni software, such as Parametrix and all the additional modules, CAD-CAM and other software so as to customise the machine according to the customer’s needs.

Find out more
D-Inside

ISOCAM

The shape processing can be executed in multiple modes.

DONATONI ISOCAM allows files to be created for the execution of straight or concave and convex arc shapes, with vertical and horizontal blades

Find out more
ISOCAM

Parametrix

Parametrix is the simple and intuitive Software developed by Donatoni Macchine and designed to optimise the management of cuts of variously-shaped pieces on a slab.

It enables work processes involving cuts with discs, milling cutters and drills, the insertion of straight and curved forms and shapes that have been pre-set or imported from DXF files, and the optimisation of processing times and slab surfaces. Based on the available surface it is possible to set the pieces arrangement and cut sequences. In the software are included anti-collision functions, manual and automatic nesting, production statistics management. Parametrix can be combined with Photoslab and Move-System.

Find out more
Parametrix

PhotosLab

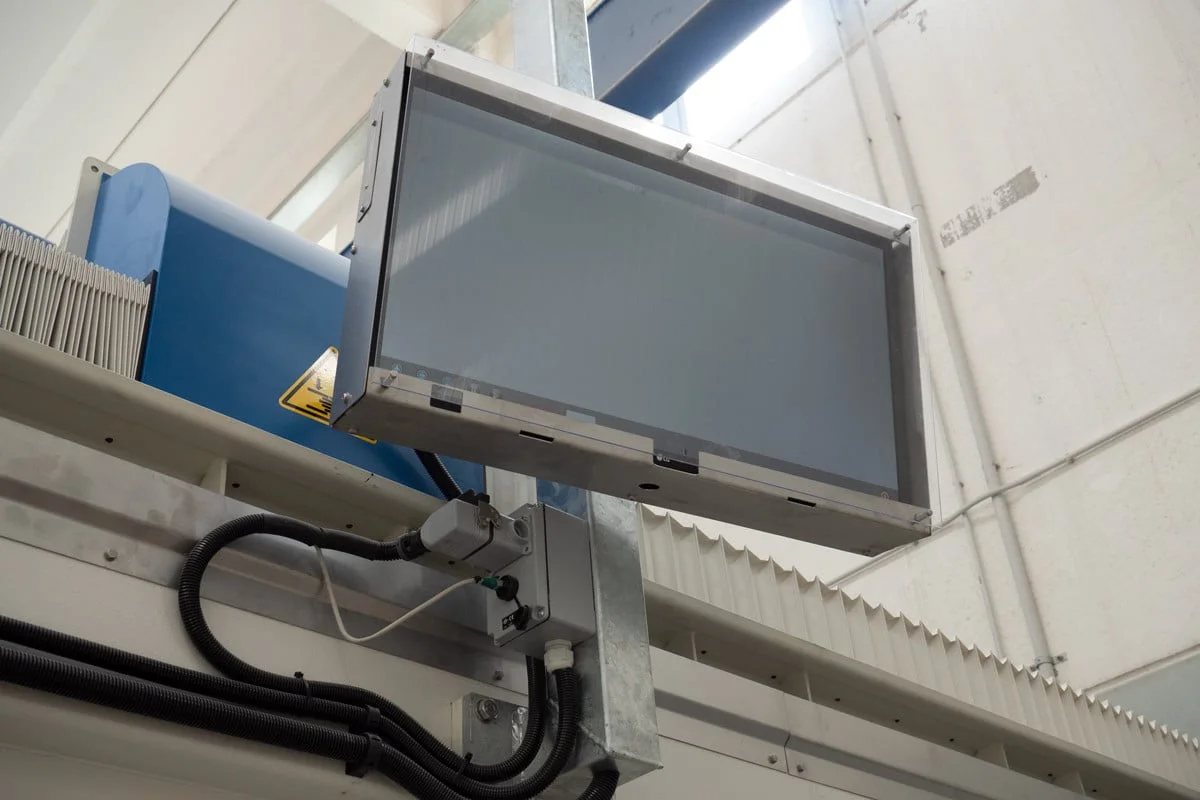

It allows the surface of slabs placed on the workbench to be automatically detected by camera.

The system optimises the use of slabs and speeds up the positioning of pieces, avoiding the generation of defects and allowing cuts to be made according to the veins of the material.

The software is automatically activated.

Find out more
PhotosLab

SCAN-CNC

Donatoni Scan CNC makes it possible to reproduce a two-dimensional object such as a kitchen countertop or a step, starting from a cardboard template, or from the damaged object itself.

Thanks to the laser pointer, SCAN CNC detects the shape of the piece placed on the workbench in a few simple steps, perfectly following the edges and creating a DXF file in real time.
After the operation the operator can:

  • Process the shape on the touch screen of the machine using the optional Parametrix or Easycut, Easystone Basic or Premium.
  • Store the file in the machine PC.
  • Store the file in an external PC through a USB device.
Find out more
SCAN-CNC

Technical data

Description

High productivity machines with Twin System patent

The DONATONI TWIN S3 is a CNC bridge milling machine with 5/6 interpolated axes featuring the TWIN System: the patented system designed by Donatoni Macchine which allows the bridge milling machine performance to be fully optimised, thereby increasing the production capacity by more than 70%. This machine allows a ’wide range of work processes to be performed, like cutting up to 150 mm, milling, drilling and shaping.

The Twin System consists of a double bench with an automatic bench exchange system, which lays on a monobloc frame with rails, on which the two benches slide to move between the cutting area and the unloading area. This allows the operator to perform loading/unloading/programming operations on the 1st bench while the machine is working on the 2nd bench.

Advantages of the TWIN System:

  • Increase of the production capacity.
  • Only 1 operator needed.
  • 2 milling machines in 1: possibility to use the machine as a traditional bridge milling machine and to perform shaping processing operations.

Sliding guides are lubricated with an oil-bath system (X and Y axes).

Additional information

Number of interpolated axes

Carriage stroke X axis mm

Maximum carriage speed (X axis) m/min

Positioning repeatability axis X mm

Bridge stroke Y axis mm

Maximum bridge speed (Y axis) m/min

Positioning repeatability axis Y mm

Vertical stroke Z axis mm

Maximum head speed (Z axis) m/min

Positioning repeatability axis Z mm

Blade-carrying head rotation (C axis) deg

Disc head tilting movement (axis A) deg

Working table dimensions mm

,

Benches traslating speed m/min

Benches exchange time s

Maximum dynamic load over single bench kg

Maximum static load over single bench kg

Tilting minimun slab dimensions mm

Tilting maximun slab dimensions mm

Minimum disc diameter mm

Maximum disc diameter mm

Maximum cutting depth mm

TOOL Electro spindle motor power kW

TOOL electro spindle motor nominal torque Nm

TOOL electro spindle motor speed range rpm

Spindle shaft diameter mm

Suction cups stroke mm

Max. disc dimensions with suction cups mm

Max weight lift with suction cups kg

Slab lenght gauges stroke mm

Max. disc usable with slab lenght gauges mm

Water consumption l/min

Air Consumption l/min

Standard electric voltage V/Hz

Total installed power kW

Approx. total weight of the machine kg

More info

Do you want to know more?

    Download catalog
