Z 1400

Donatoni Z 1400

Z 1400

Request info
Donatoni Z 1400

Highly versatile multifunctional machining centres with high productivity.

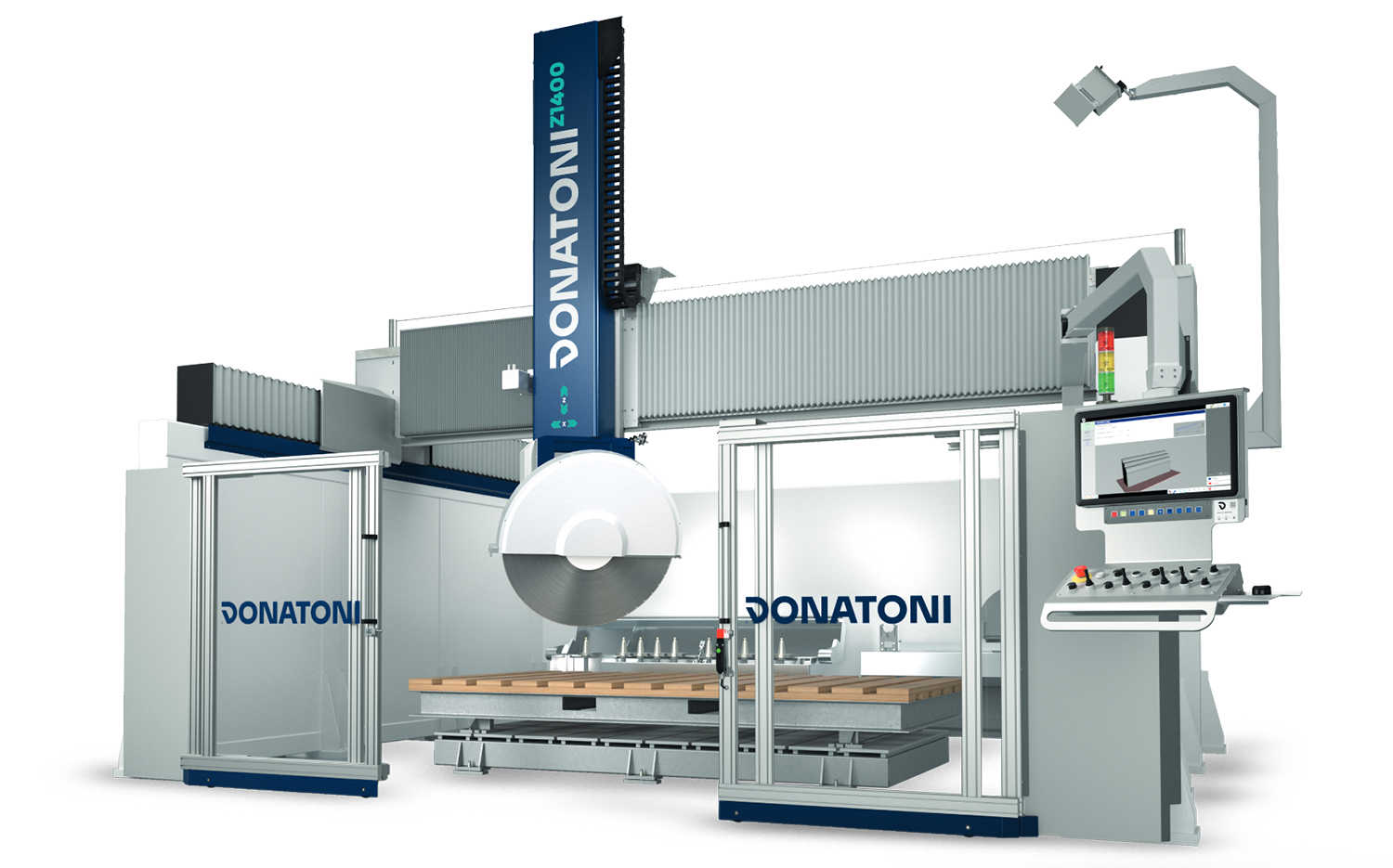

The DONATONI Z1400 is a large multifunction CNC machining centre with 5/6 interpolated axes with a 1400 mm Z-axis stroke. It is suitable for cutting and shaping operations (simple and complex, rectilinear, concave, convex, arched, for milling two- and three-dimensional sections, as well as for columns, sculptures, and all types of cuts).

Discover the complete series

Main features

  • These machines are designed to be extremely versatile and powerful machining centres with high accuracy.
  • Thanks to the steel bridge with reinforced structure, axes movements generated by brushless motors coupled with ultra-high-precision gearboxes, and X- and Y-axis sliding on linear guides and racks, it is possible to produce objects of different dimensions and shapes with extremely precise finishes.
Specifications for shaping and excavation

Specifications for shaping and excavation

Extremely powerful

Extremely powerful

Simple and easy to program

Simple and easy to program

Cnc technology: precision and productivity

Cnc technology: precision and productivity

Wide range of accessories and configurations

Wide range of accessories and configurations

Flexible production

Flexible production

Ability to cut large thicknesses

Ability to cut large thicknesses

Main components

Watch the Z 1400 in action

Application sectors

Donatoni Z 1400 can be used for :

Software

D-Inside

Manages the integration of the machine with the programming softwares.

Perfection in processing is reached through multiple movements that need o be perfectly coordinated. Every Donatoni machine is created with a smart system for managing work, integrated with all the parts that manage its movements; we call this system D-Inside, the Brain of the machine. D-Inside is an advanced interface but simple from the point of view of use and also ideal for less expert operators as it manages the machine-software system. The D-Inside system offers various programming options and can be interfaced with various types of Donatoni software, such as Parametrix and all the additional modules, CAD-CAM and other software so as to customise the machine according to the customer’s needs.

Find out more
D-Inside

ISOCAM

The shape processing can be executed in multiple modes.

DONATONI ISOCAM allows files to be created for the execution of straight or concave and convex arc shapes, with vertical and horizontal blades

Find out more
ISOCAM

Parametrix

Parametrix is the simple and intuitive Software developed by Donatoni Macchine and designed to optimise the management of cuts of variously-shaped pieces on a slab.

It enables work processes involving cuts with discs, milling cutters and drills, the insertion of straight and curved forms and shapes that have been pre-set or imported from DXF files, and the optimisation of processing times and slab surfaces. Based on the available surface it is possible to set the pieces arrangement and cut sequences. In the software are included anti-collision functions, manual and automatic nesting, production statistics management. Parametrix can be combined with Photoslab and Move-System.

Find out more
Parametrix

PhotosLab

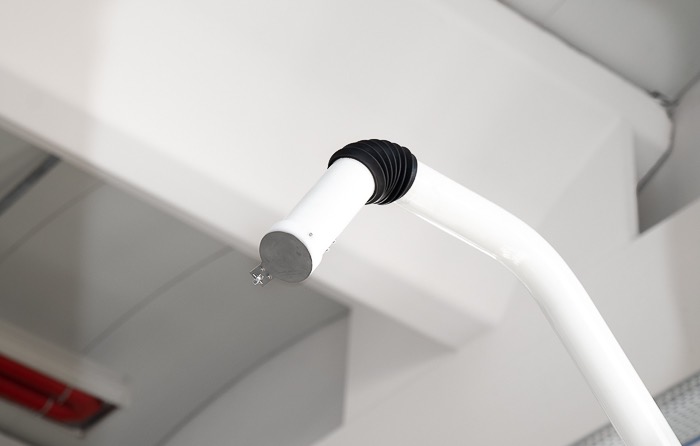

It allows the surface of slabs placed on the workbench to be automatically detected by camera.

The system optimises the use of slabs and speeds up the positioning of pieces, avoiding the generation of defects and allowing cuts to be made according to the veins of the material.

The software is automatically activated.

Find out more
PhotosLab

SCAN-CNC

Donatoni Scan CNC makes it possible to reproduce a two-dimensional object such as a kitchen countertop or a step, starting from a cardboard template, or from the damaged object itself.

Thanks to the laser pointer, SCAN CNC detects the shape of the piece placed on the workbench in a few simple steps, perfectly following the edges and creating a DXF file in real time.
After the operation the operator can:

  • Process the shape on the touch screen of the machine using the optional Parametrix or Easycut, Easystone Basic or Premium.
  • Store the file in the machine PC.
  • Store the file in an external PC through a USB device.
Find out more
SCAN-CNC

Technical data

Description

Highly versatile multifunctional machining centres with high productivity.

The DONATONI Z1400 is a large multifunction CNC machining centre with 5/6 interpolated axes with a 1400 mm Z-axis stroke. It is suitable for cutting and shaping operations (simple and complex, rectilinear, concave, convex, arched, for milling two- and three-dimensional sections, as well as for columns, sculptures, and all types of cuts).

Additional information

Number of interpolated axes

Carriage stroke X axis mm

Bridge stroke Y axis mm

Vertical stroke Z axis mm

Blade-carrying head rotation (C axis) deg

Disc head tilting movement (axis A) deg

Working table dimensions mm

Minimum disc diameter mm

Maximum disc diameter mm

Maximum cutting depth mm

Maximum carriage speed (X axis) m/min

Maximum bridge speed (Y axis) m/min

Maximum head speed (Z axis) m/min

XY-axis positioning speed m/min

Water consumption l/min

Air Consumption l/min

Standard electric voltage V/Hz

Max disc with Move2 system mm

Max weight lift with suction cups kg

Max. disc usable with slab lenght gauges mm

Approx. total weight of the machine kg

More info

Do you want to know more?

    Download catalog
