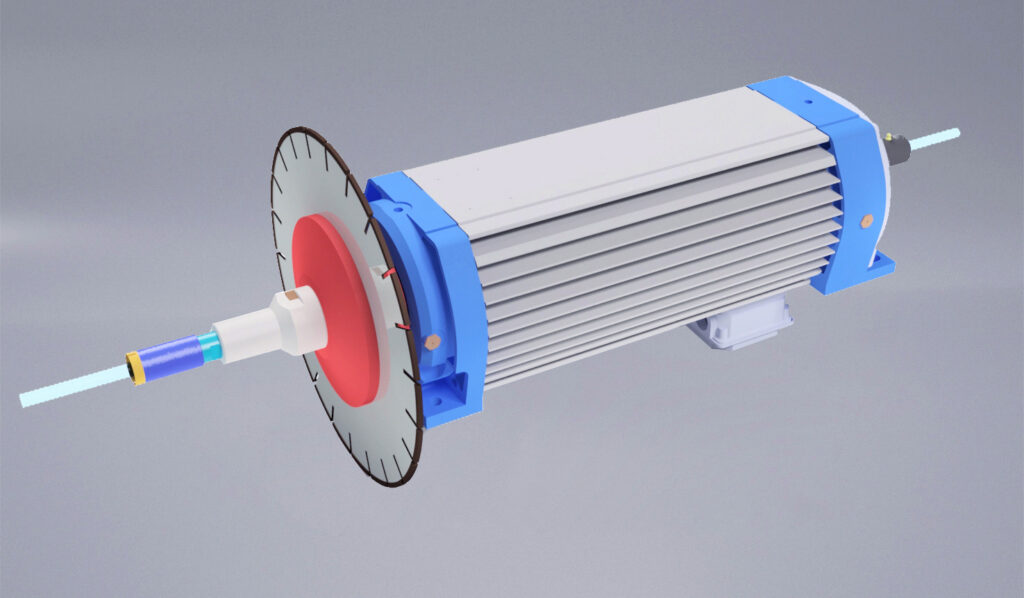

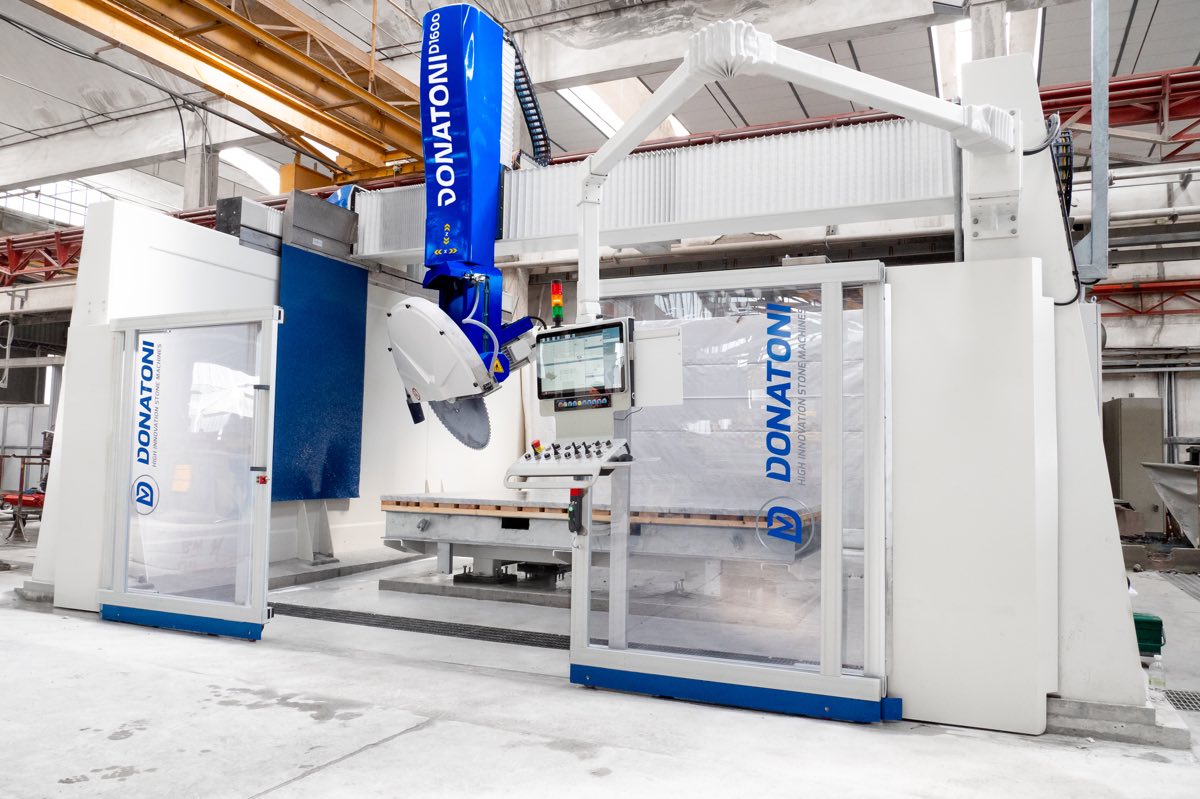

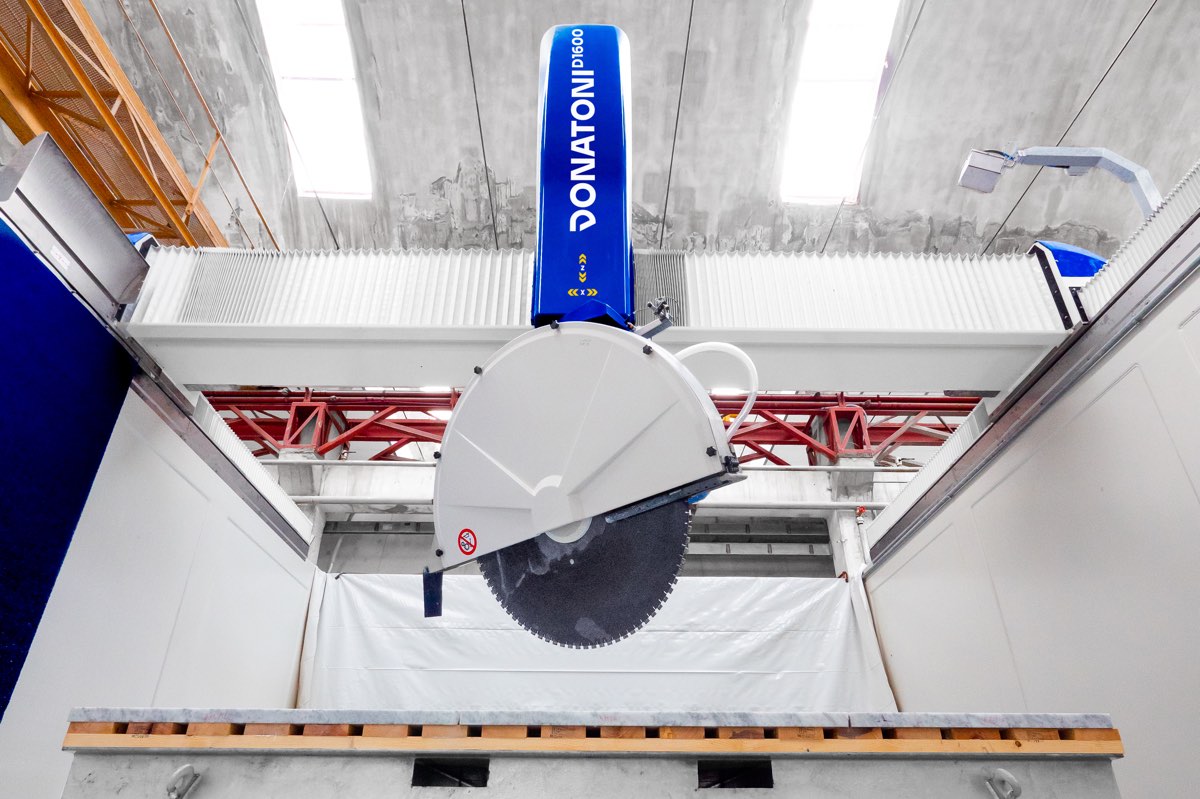

Electro-spindles Kw 35 /S6 with high quality produced in Italy, with adjustment of the nr. of revolutions, blade head rotating from -5° to +545° degrees and inclinable from 0 to 90 degrees, mounted on steel carriage.
Control consolle on double-jointed on swing arm, manual controls, video 21″ color touch-screen, keyboard and usb port for importing files.

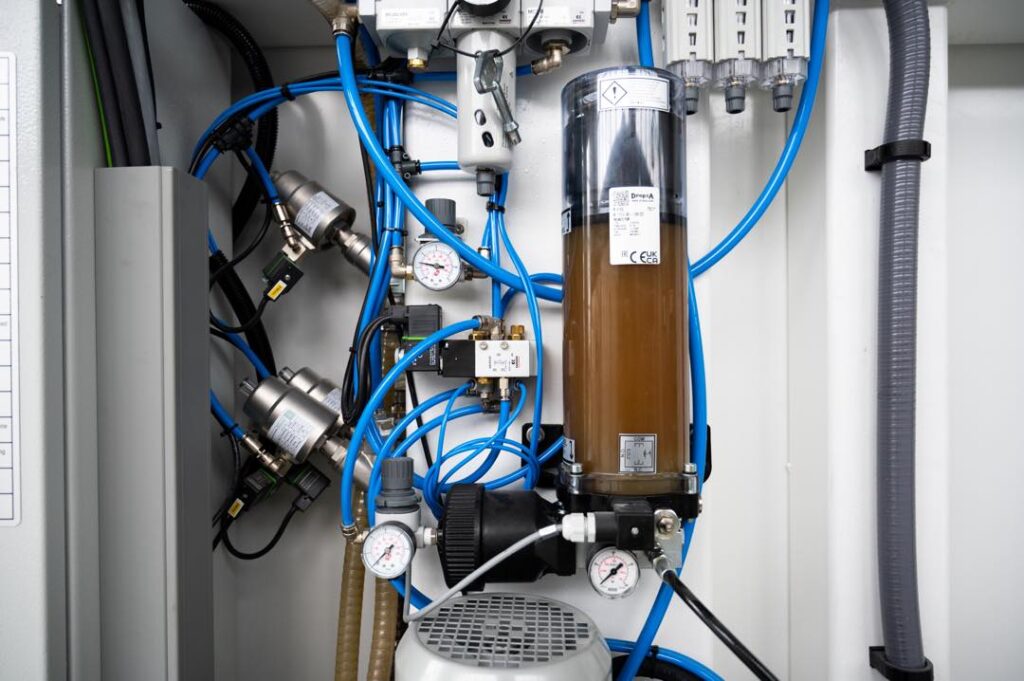

Lubrication of the X and Y axes with grease
Disk presetting unit: measurement system of blade diameter.
Manages the integration of the machine with the programming softwares.
Perfection in processing is reached through multiple movements that need o be perfectly coordinated. Every Donatoni machine is created with a smart system for managing work, integrated with all the parts that manage its movements; we call this system D-Inside, the Brain of the machine. D-Inside is an advanced interface but simple from the point of view of use and also ideal for less expert operators as it manages the machine-software system. The D-Inside system offers various programming options and can be interfaced with various types of Donatoni software, such as Parametrix and all the additional modules, CAD-CAM and other software so as to customise the machine according to the customer’s needs.
The shape processing can be executed in multiple modes.
DONATONI ISOCAM allows files to be created for the execution of straight or concave and convex arc shapes, with vertical and horizontal blades
Parametrix is the simple and intuitive Software developed by Donatoni Macchine and designed to optimise the management of cuts of variously-shaped pieces on a slab.
It enables work processes involving cuts with discs, milling cutters and drills, the insertion of straight and curved forms and shapes that have been pre-set or imported from DXF files, and the optimisation of processing times and slab surfaces. Based on the available surface it is possible to set the pieces arrangement and cut sequences. In the software are included anti-collision functions, manual and automatic nesting, production statistics management. Parametrix can be combined with Photoslab and Move-System.
It allows the surface of slabs placed on the workbench to be automatically detected by camera.
The system optimises the use of slabs and speeds up the positioning of pieces, avoiding the generation of defects and allowing cuts to be made according to the veins of the material.
The software is automatically activated.
Donatoni Scan CNC makes it possible to reproduce a two-dimensional object such as a kitchen countertop or a step, starting from a cardboard template, or from the damaged object itself.
Thanks to the laser pointer, SCAN CNC detects the shape of the piece placed on the workbench in a few simple steps, perfectly following the edges and creating a DXF file in real time.
After the operation the operator can:
|Number of interpolated axes||N°|
|Carriage stroke X axis||mm|
|Bridge stroke Y axis||mm|
|Vertical stroke Z axis||mm|
|Blade-carrying head rotation (C axis)||deg|
|Disc head tilting movement (axis A)||deg|
|Working table dimensions||mm|
|Minimum disc diameter||mm|
|Maximum disc diameter||mm|
|Maximum cutting depth||mm|
|Electro spindle motor power||kW|
|Tool rotation with inverter||rpm|
|XY-axis positioning speed||m/min|
|Maximum head speed (Z axis)||m/min|
|Standard electric voltage||V/Hz|
|Approx. total weight of the machine||kg|
